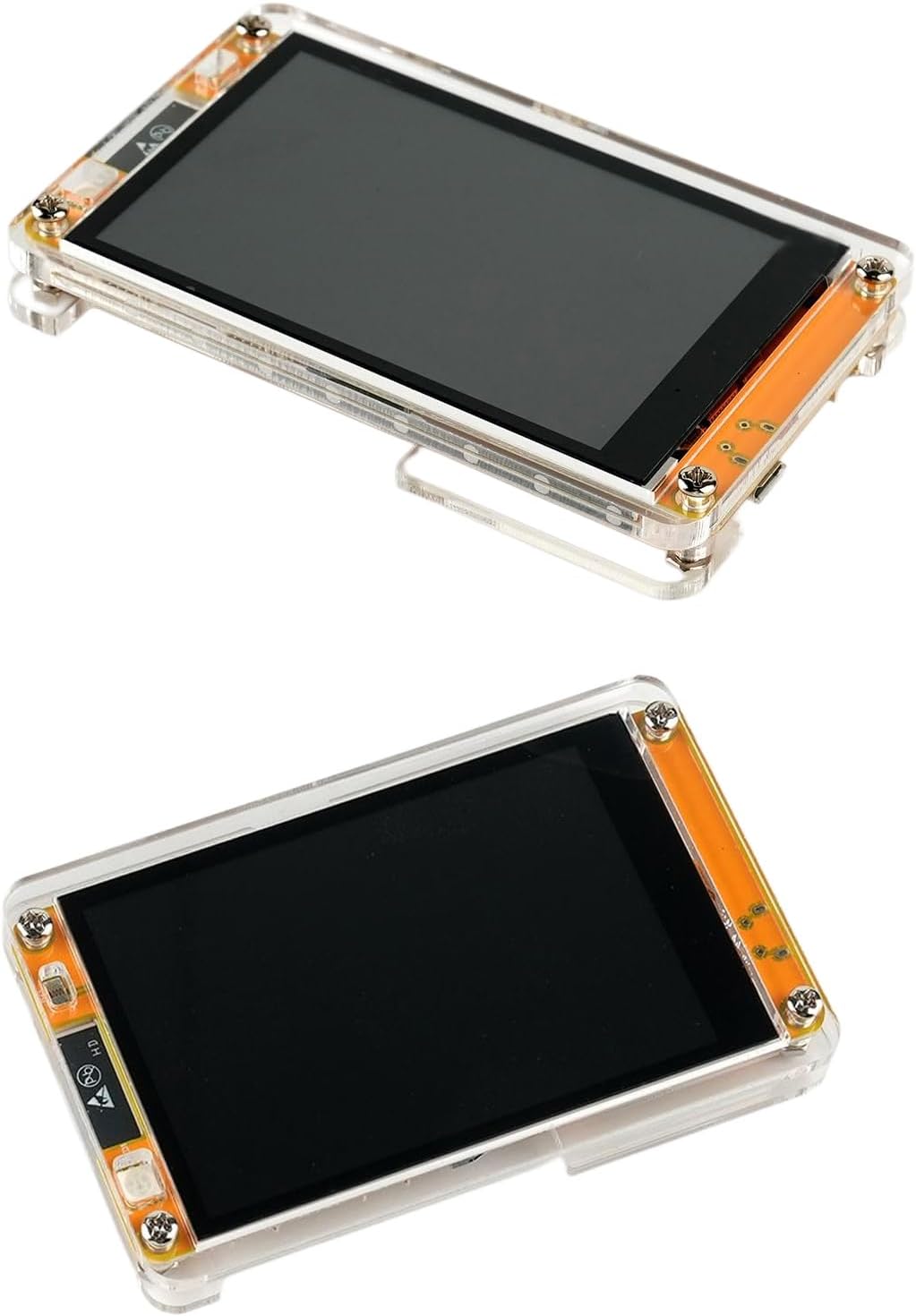

3.5" LCD Display Module ESP32-3248S035C WiFi+Bluetooth ESP32 Development Board 320x480 ST7796 Driver 3.5inch Capacitive Touchscreen for Arduino
4.4 (101 items)
Limited Time SaleUS$17.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 217004018 | Release Date | 2026/04/19 | List Price | US$12.00 | Model Number | 217004018 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features 3.5-inch color screen, support 16 BIT RGB 65K color display, display rich colors 320X480 resolution The sample program has been programmed in the factory and can be plugged in With TF card slot for easy expansion storage (TF card does not included) Provide arduino library functions and sample programs to facilitate rapid secondary development Support one-click download program Military-grade process standards, long-term stable work Display color: RGB 65K color Capacitive touch: ESP32-3248S035C Size: 3.5 inch Type: TFT Driver chip: ST7796 Resolution: 320*480(Pixel) Effective display area: 73.44*48.96(mm) Module size: 101.5*54.9(mm) View: >60° Operating temperature: -20℃~70℃ Storage temperature: -30℃~80℃ Operating Voltage: 5V Power consumption: About 120mA Package includes: 1 x 3.5" LCD Display 1 x Acrylic case for ESP32-3248S035C Display
- ESP32-3248S035C LCD module uses ESP32-S3 module as the main control, dual-core MCU: ESP32-D0WDQ6, integrated WI-FI&Bluetooth functions
- The main frequency can reach 240MHz, 520KB SRAM, 448KB ROM, Flash size: 4MB+4MB, display resolution: 320X480, capacitive touch

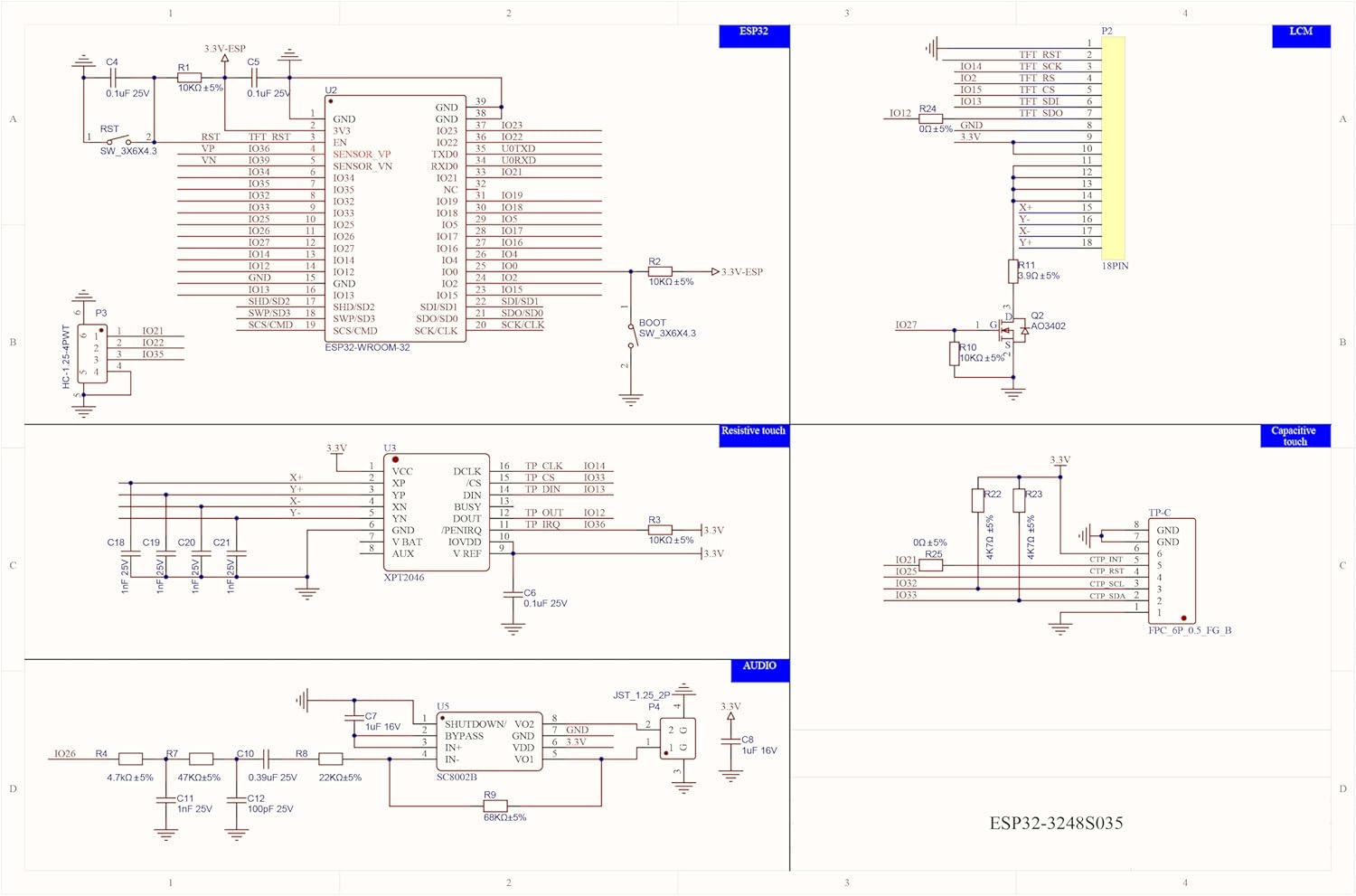

- The module includes LCD display screen, backlight control circuit, touch screen control circuit, speaker drive circuit, photosensitive circuit and RGB-LED control circuit
- Multiple interface configuration: TF card interface, serial interface, temperature and humidity sensor interface (DHT11 interface) and reserved IO port interface
- Supports development in Arduino-IDE, ESP IDE, Micropython-and-Mixly
- What you will get: 1 x 3.5" LCD Display + 1 x Acrylic case for ESP32-3248S035C Display
| Brand | DIYmall |
|---|---|
| Model Name | ESP32-3248S035C |
| Chipset Type | ESP32-S3 |
| Manufacturer | DIYmall |
| Model Number | ESP32-3248S035C |
| BuiltIn Media | 1 x 3.5" LCD Display + 1 x Acrylic case for ESP32-3248S035C Display |
| Processor Socket | LGA |
| Compatible Devices | Personal Computer, Laptop, Single-Board Computer |
| Warranty Description | 1 |
| Compatible Processors | ESP32-S3, ESP32-S2, ESP32-S, ESP32-D0WDQ6 |
| RAM Memory Technology | DRAM |
| Graphics Card Interface | Integrated |
| Ram Memory Maximum Size | 0.5 MB |
| Main Power Connector Type | 20-Pin |
